DMSTA Simulation Results				Case:	SAV_Hi_Pulsed		Period:	06/01/98	to	11/22/00
Case:	SAV Mesocosm Hi Hydraulic Load (~53 cm/d); steady then pulsed
Input Series		SAV_High			Tanks in Series		1.3	Surface Area (km2)		0.0000
Simulation Period		06/01/98	thru	11/22/00	Mean Water Load  (cm/d)		54.8	Bypass Volume		0.0%
Output Period		06/01/98	thru	11/22/00	Max Water Load (cm/d)		212.0	Mean Depth (cm)		80
Startup Interval (days)		610	Iterations	1	Inflow Conc  (ppb)		105.4	Max Depth (cm)		80
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		20462	Freq Depth <  5 cm		0.0%
Parameter Set:		none			Outflow FWM  Conc (ppb)		59.0	Load Reduction		44%
K  (m/yr)		135.09	Sm (mg/m2)	0	Outflow C with Bypass		59.0	Time Freq Conc > 10 ppb		90%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		82.5	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		56.5	Storage Turnover (1/yr)		43.0
Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		56.0	Mean Stored P (mg/m2)		3356
Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		115.8	Storage Inc/Net Removal		12%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		146.2	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			02/01/00	thru	11/22/00	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			42	79.9	78.6	1.2	2%	4%	#N/A
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			31	51.4	49.8	1.6	3%
Geometric Mean Conc (ppb)			31	63.9	66.4	-2.5	-4%	33%	14%
Mean Conc (ppb)			31	68.6	67.6	1.0	2%	29%	12%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			42	40.37	39.14	1.23	3%	35%	90%

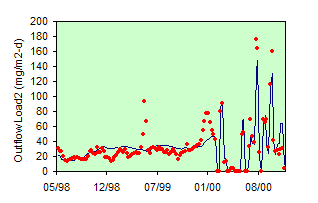

Obs Load2 = Predicted Flow x Obs Conc

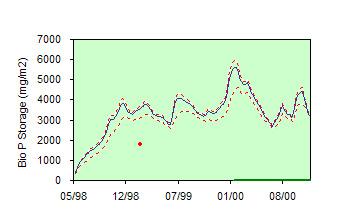

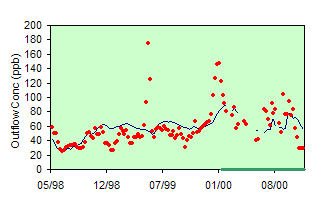

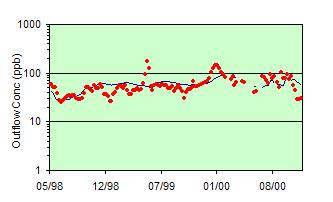

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
