DMSTA Simulation Results				Case:	SAV_Mod_Steady		Period:	06/01/98	to	05/22/01
Case:	SAV Mesocosm Moderate Hydraulic Load (~22 cm/d); steady flow
Input Series		HL_22			Tanks in Series		1.3	Surface Area (km2)		0.0000

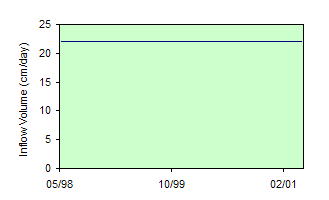

Simulation Period		06/01/98	thru	05/22/01	Mean Water Load  (cm/d)		22.3	Bypass Volume		0.0%
Output Period		06/01/98	thru	05/22/01	Max Water Load (cm/d)		22.0	Mean Depth (cm)		80
Startup Interval (days)		365	Iterations	1	Inflow Conc  (ppb)		96.7	Max Depth (cm)		80
Avg Interval (days)		7			Inflow P Load (mg/m2-yr)		7989	Freq Depth <  5 cm		0.0%

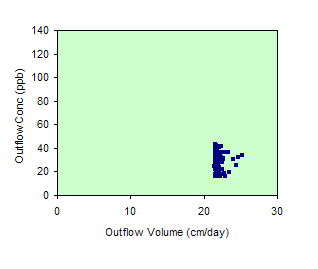

Parameter Set:		none			Outflow FWM  Conc (ppb)		30.1	Load Reduction		69%
K  (m/yr)		147.49	Sm (mg/m2)	0	Outflow C with Bypass		30.1	Time Freq Conc > 10 ppb		100%
C1 (ppb)		22.0	Sp (mg/m2)	0	95th Percentile (ppb)		41.4	Vol Freq Conc > 10 ppb		100%
C0  (ppb)		4.0	Qout Intercept	0.0	Outflow Geo. Mean (ppb)		29.3	Storage Turnover (1/yr)		28.1

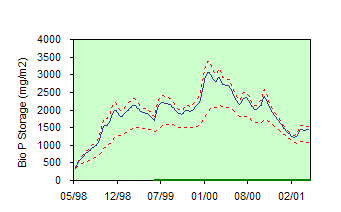

Zx  (cm)		60	Qout Exponent	0.0	Outflow GM,  Q>0 (ppb)		29.3	Mean Stored P (mg/m2)		1896

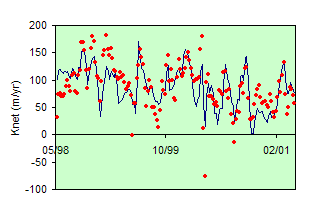

Wtr Bal Error		0.0%			Knet-Plug Flow (m/yr)		94.2	Storage Inc/Net Removal		7%
Mass B Error		0.0%			Knet-NCSTR (m/yr)		153.1	Outfl. Seepage (cm/d/cm)		0
Ki	E/m2-d	0	0	Model 2	Mean Biomass (g/m2)		#N/A	Biomass Turnover (1/yr)		#N/A
Kb	1/d	0	0	"	Gross PP  (g/m2-d)		#N/A	Total Resp (g/m2-d)		#N/A
Kr	1/d/g/m2	0	0	"
Ka	1/d	0	0	"
Kc	ppb	0	0	"
Ke	1/d	0	0	"
Ku	mg/m2	0	0	"
Calibration  Statistics for Period:			06/01/99	thru	05/22/01	Mean	Mean
			Count	Observed	Predicted	Residual	Resid%	RSE%	R2
Mean Depth (cm)			103	80.0	80.0	0.0	0%	0%	0%
Flow (cm/day)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Flow-Wtd-Mean Conc (ppb)			103	34.6	32.6	2.0	6%
Geometric Mean Conc (ppb)			103	32.0	32.1	-0.1	0%	33%	18%
Mean Conc (ppb)			103	34.6	32.6	2.0	6%	41%	13%
Outflow Load (mg/m2-d)			0	#N/A	#N/A	#N/A	#N/A	#N/A	#N/A
Pred Q x Conc (mg/m2-d)			103	7.59	7.16	0.44	6%	40%	14%

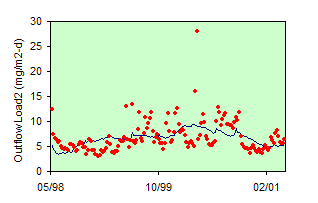

Obs Load2 = Predicted Flow x Obs Conc

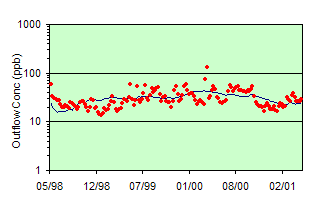

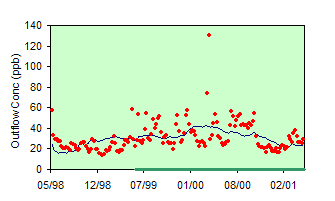

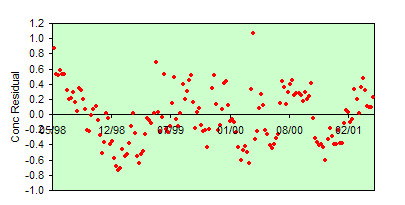

Green lines on x axis of concentration plots indicate model calibration period.
06/07/02
